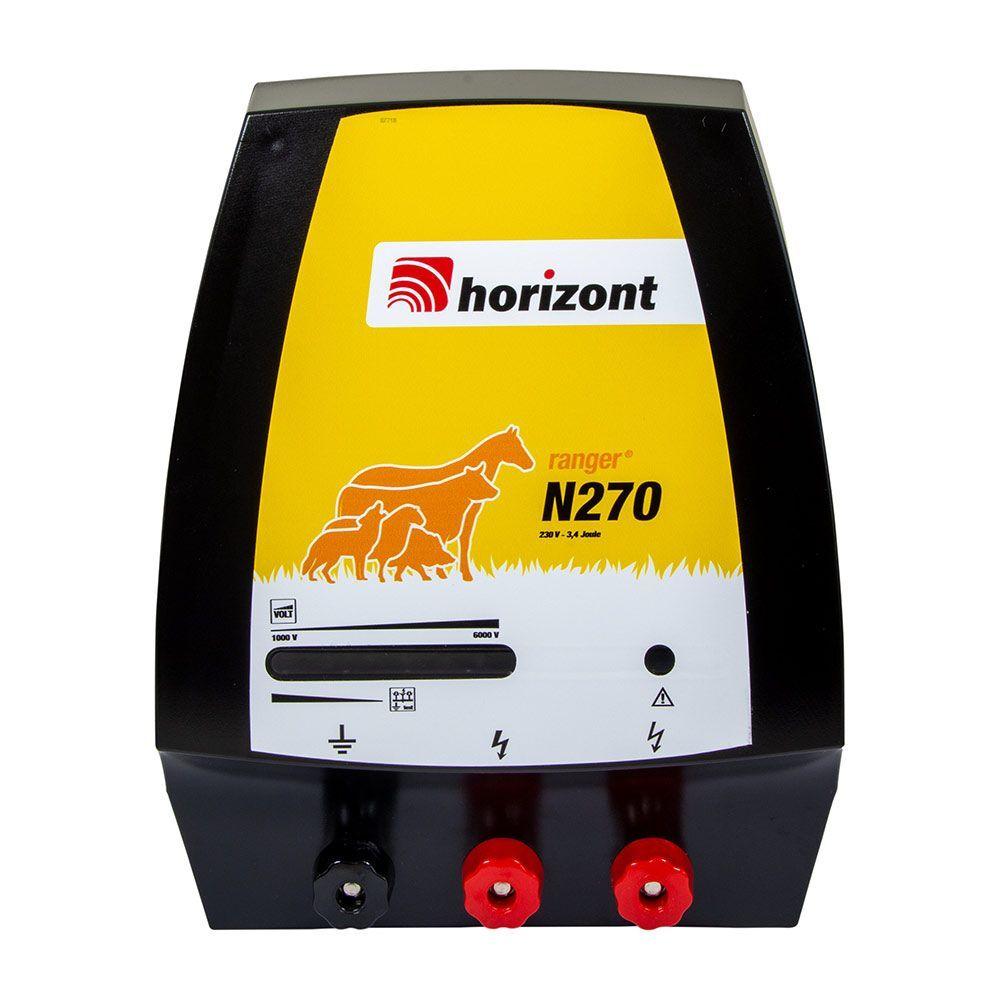

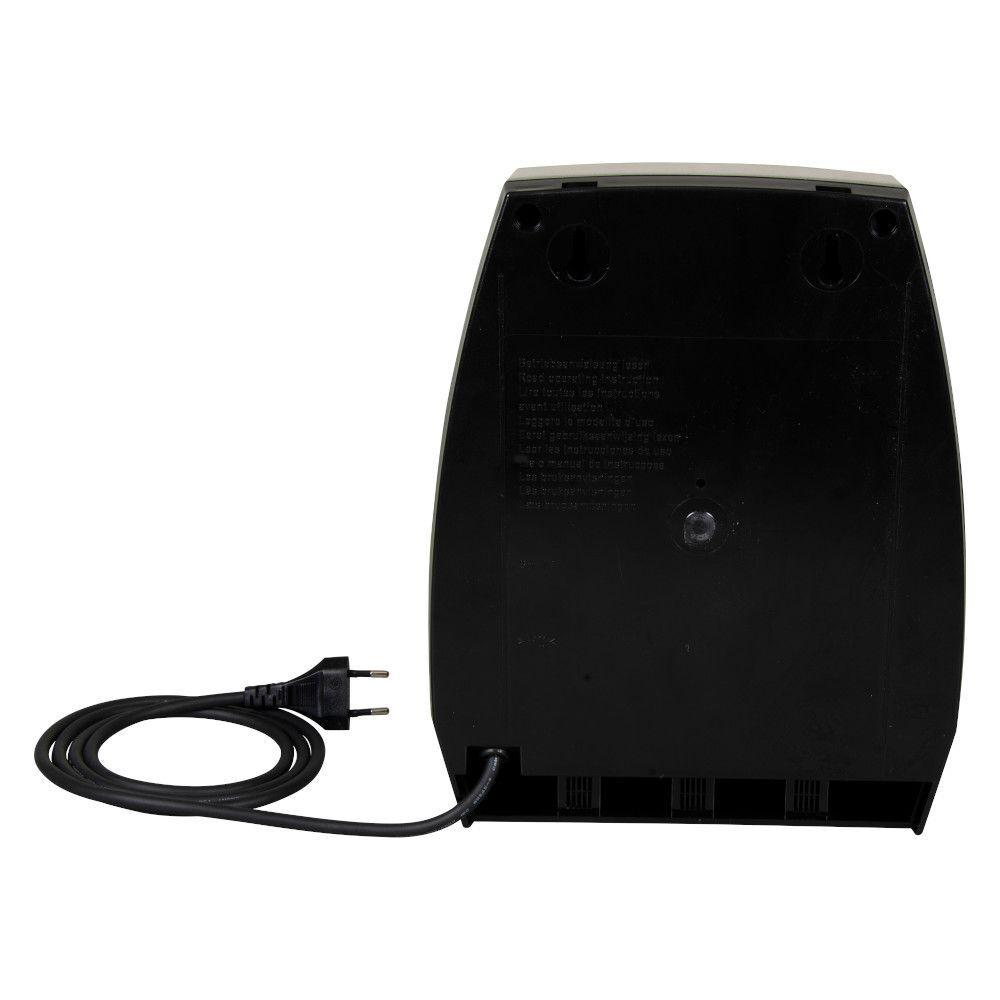

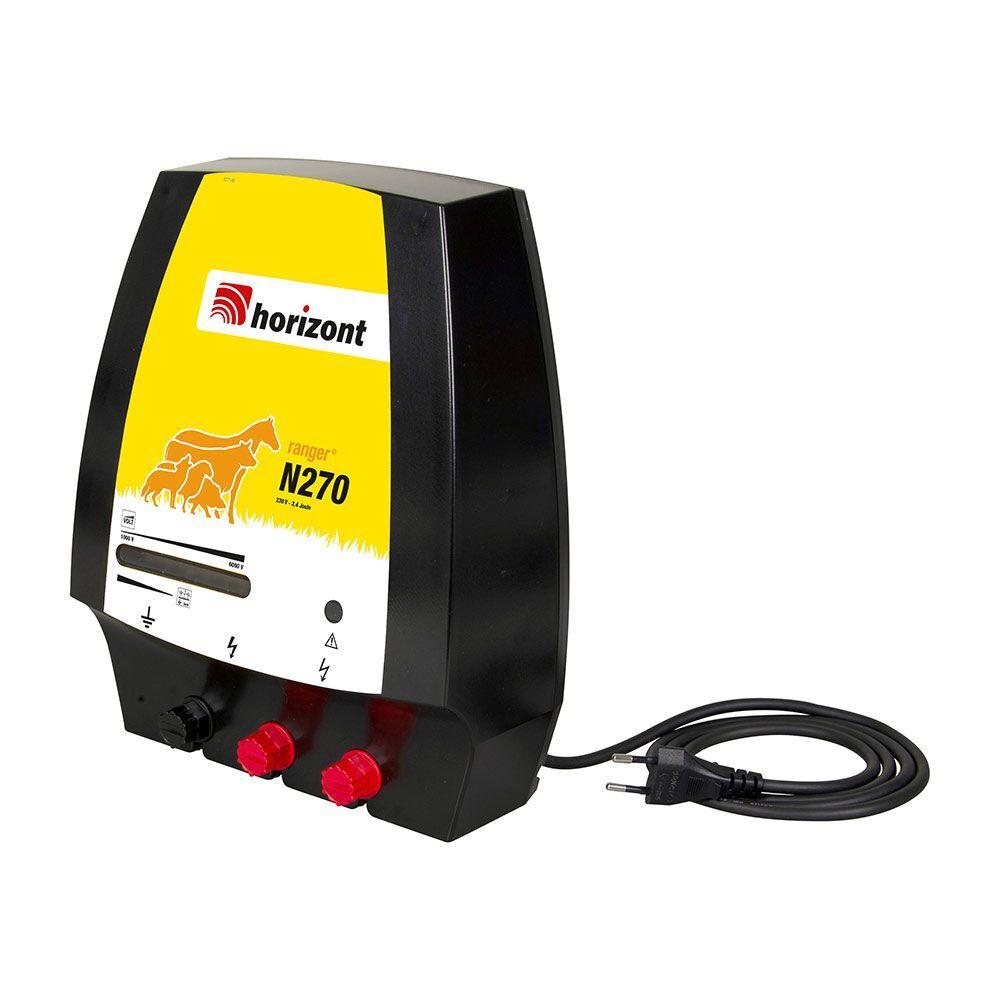

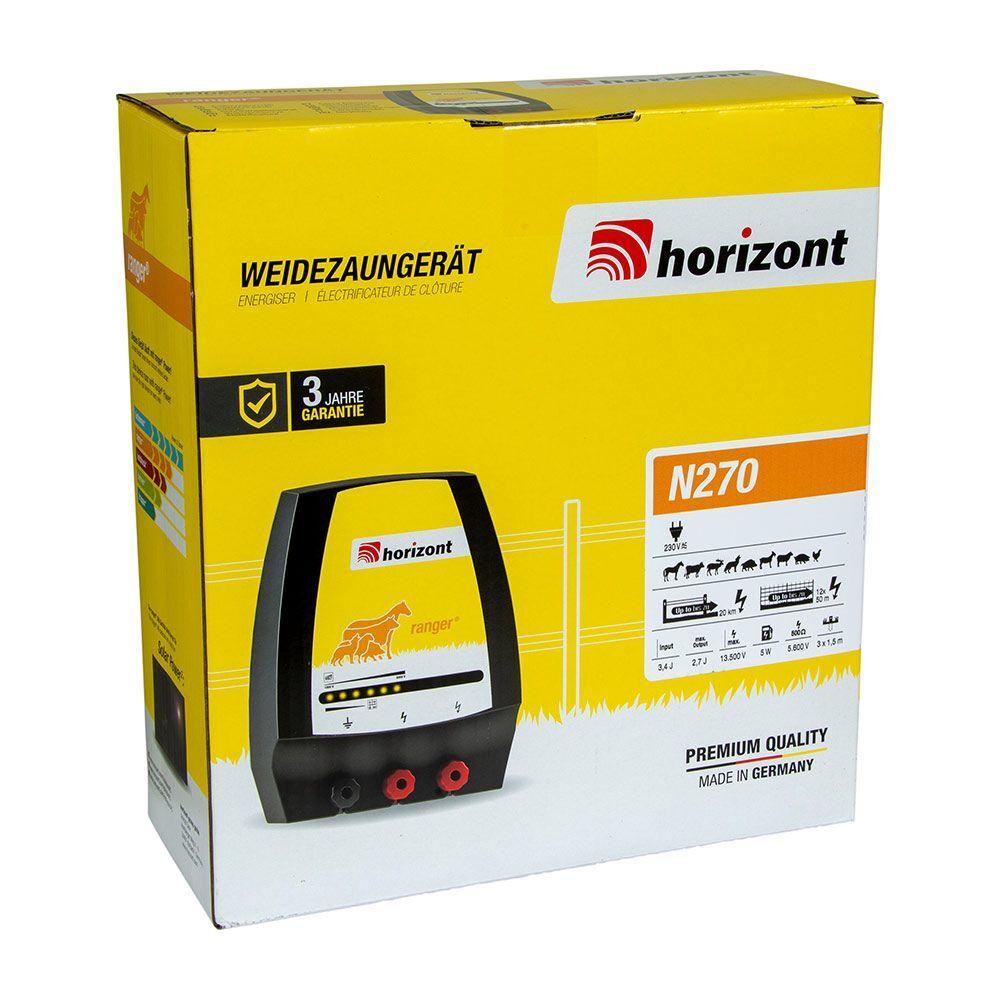

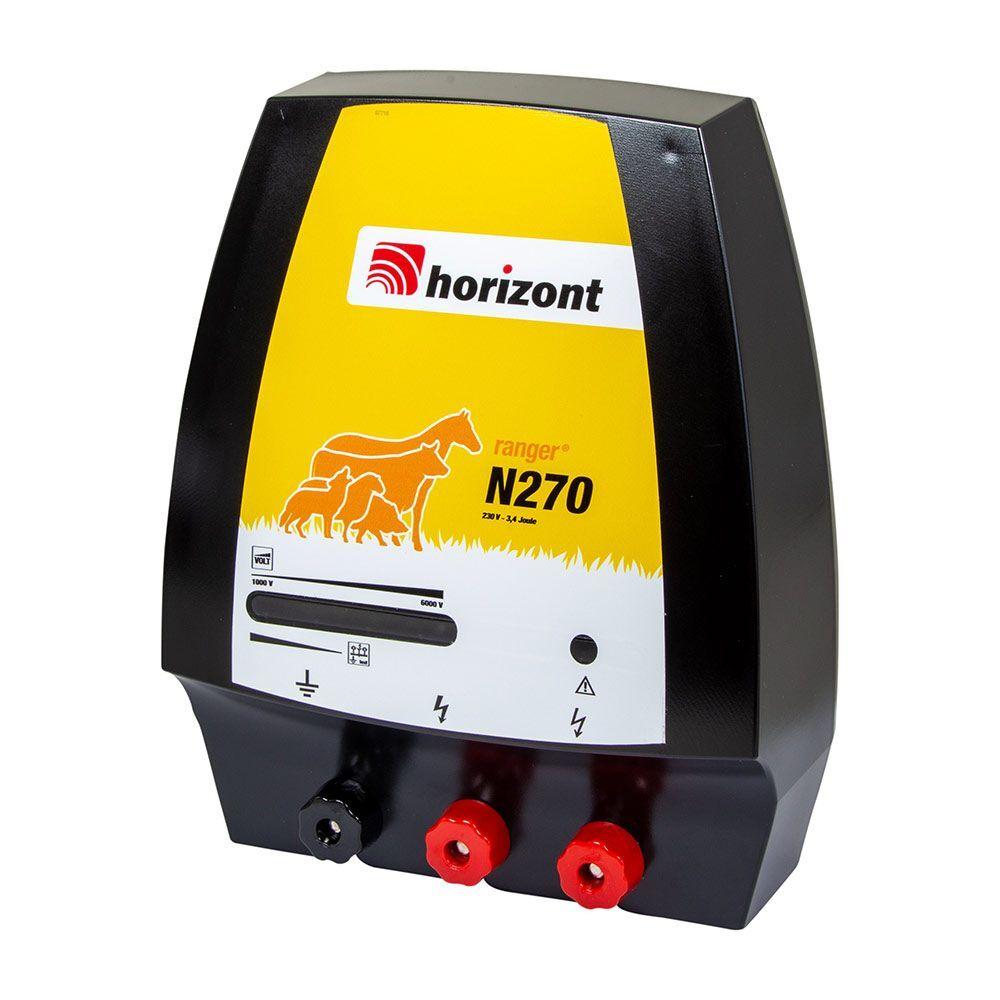

Mains station Ranger N270

The ranger energizer has 3 connections: in addition to the ground output, there are 2 outputs: a high-power output and a low-power output. The low-power output (limited to approx. 0.5J) is specially used for surrounding houses.
Electrifiers applicable to all types of installations.
Pulses will enable the energy to be both dissuasive and non-traumatizing throughout the fence.
Pulses work very well in conditions of high resistance (mane or animal hair or in dry ground conditions).
Mains unit 3.5J input 2.4J output
For fences up to 20km without vegetation and 2km with heavy vegetation.
Technical specifications:
Power supply: 230V
Stored energy: 3.5J
Output energy: 2.4 J
Maximum fence voltage: 11800V
Voltage under 500 Ohms: 5400V
Maximum fence voltage (2 outputs): 9000V
Consumption: 5W
Maximum fence distance, EEC standard: 60km
Distance without vegetation: 20km
Distance with medium vegetation: 5km
Distance with heavy vegetation: 2km
Number of electrifiable net wires: 12 x 50m
Ground stakes: 2x1.5m
