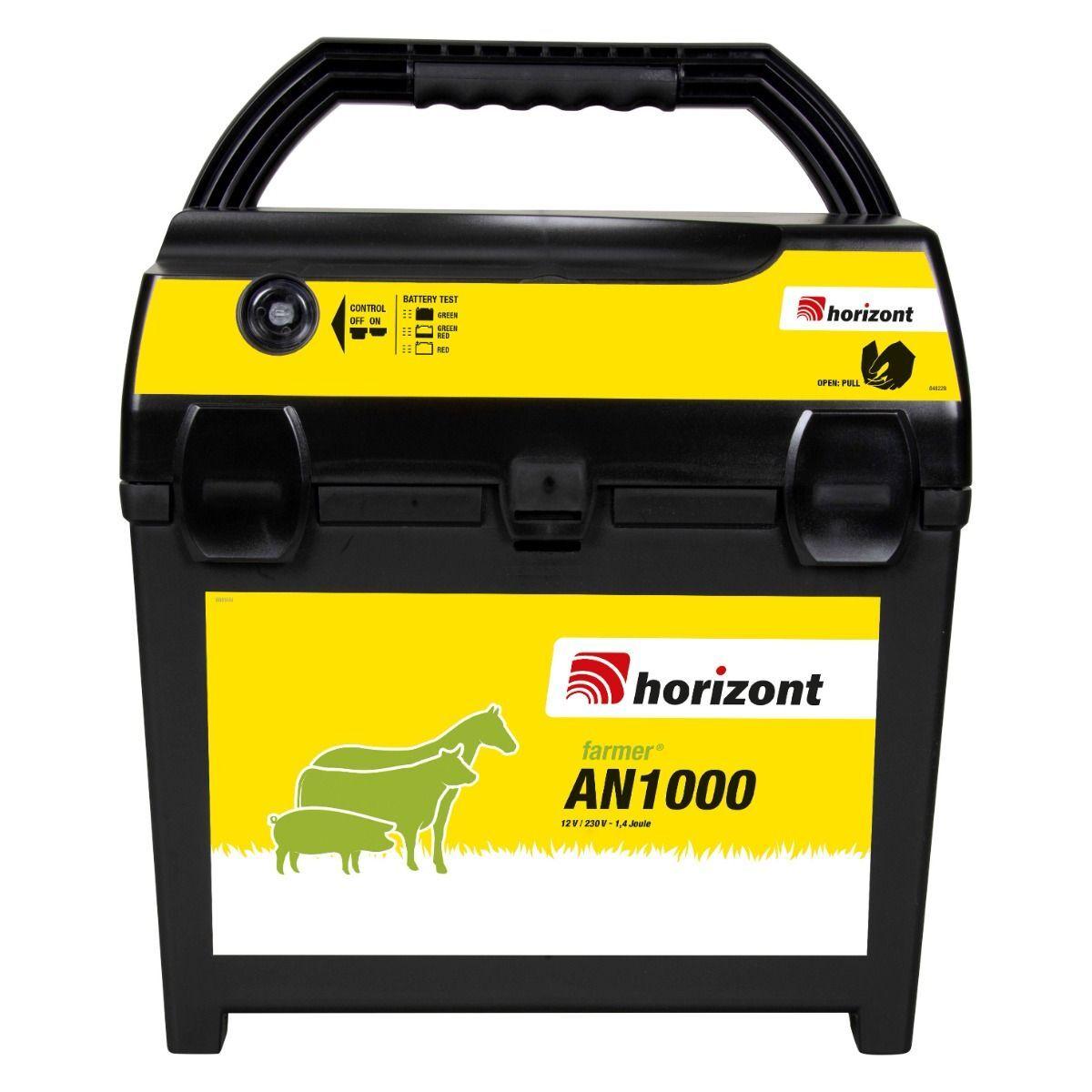

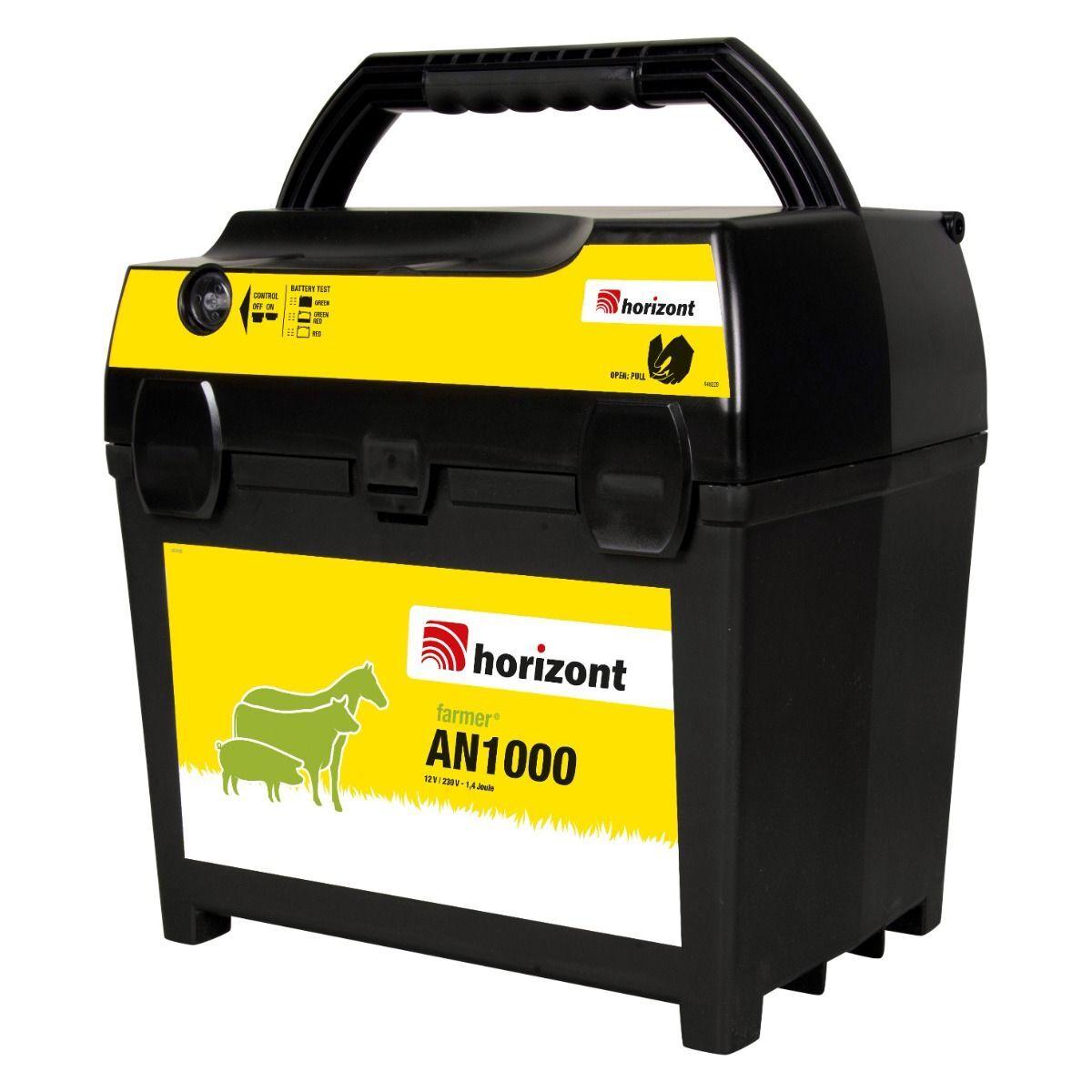

Mixed station Farmer AN1000

The FARMER AN1000 mains adapter is practical and easy to use, easy to transport and has a long autonomy thanks to its low energy consumption.
farmer® universal energizers are integrated into a compact housing, and have an output power of up to 2.5 J and a voltage of up to 12,500 V. Whatever the loss, the device restores equivalent energy or power. The high or very high voltage deployed by the energizer provides sufficient energy to contain the animals.
The energizer checks the general condition of the fence, even over long distances, and summarizes the main control functions via LED displays.
A high-performance device for keeping tous types of animals: cows, pigs, goats...
Technical specifications :
Power supply: 9V - 12 V - 230 V
Stored energy: 1.4 J / 12V-230V; 0.7 J / 9V
Delivered energy: 1 J / 12V-230V; 0.5 J / 9V
Maximum fence voltage: 11,000V / 12V-230V; 7,000V / 9V
Voltage under 500 Ohms: 4,800V / 12V-230V; 3,200V / 9V
Consumption: 90 mA / 12V-230V; 70 mA / 9V
Distance without vegetation: 10 km
Distance with medium vegetation: 3.5 km / 12V-230V; 4 km / 9V
Distance with heavy vegetation: 1.2 km / 12V-230V; 1.3 km / 9V
Maximum fence distance, EEC standard: 40 km / 12V-230V; 3 km / 9V
Composition:
UV protection
Fully insulated housing
Polycarbonate housing ultra-solid
Moisture protection
Function control
Energy-saving system.
Recommended nets: 5*50 m / 12V-230VRecommended earthing rods: 1*1 mRecommended battery: 85 Ah - Ref. 125H14894Recommended solar panel: 10 W
Included with energizer:
Ground connection cable with reinforced plastic sheath.
Connection clamp for 12 V battery
